Name: Fusion Apollo 7.7" LED Marine Speakers w/Sports White Grille
SKU: 447711

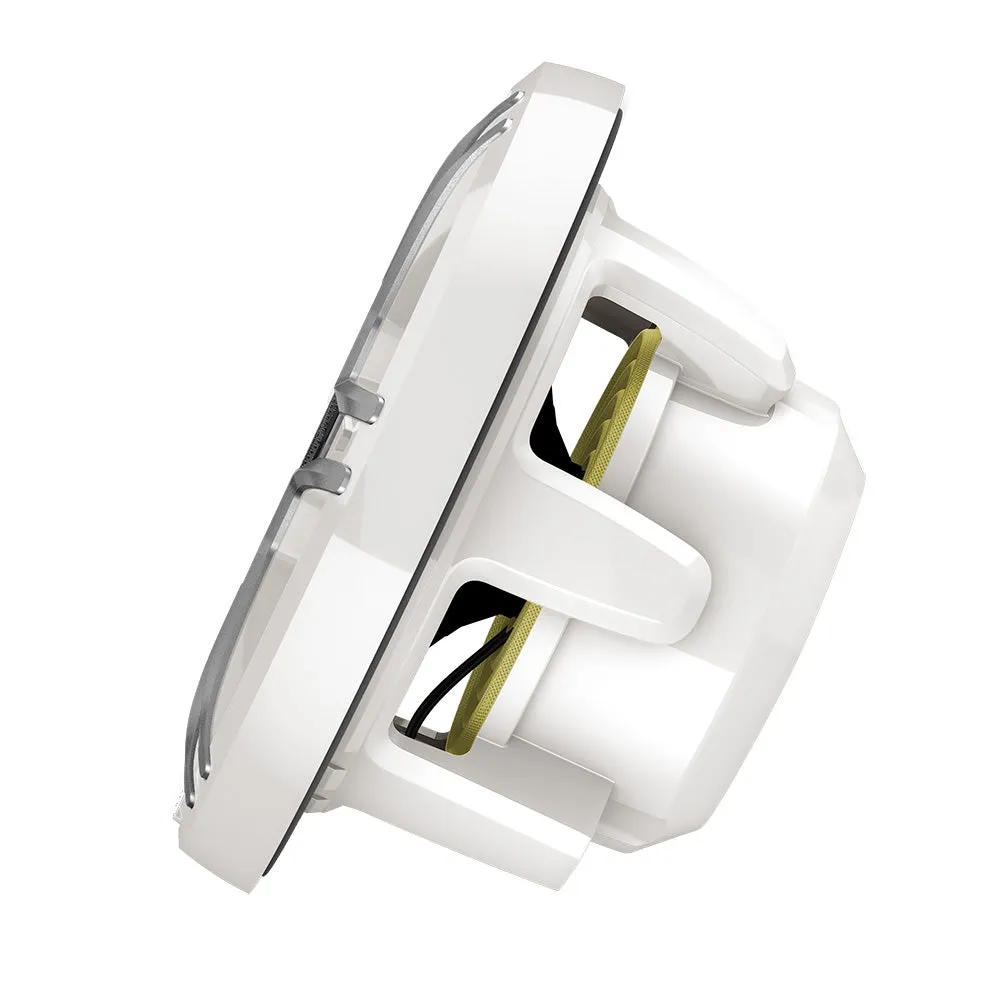

Apollo™ 7.7" LED Marine Speakers with Sports White Grille

SURRENDER TO THE SOUND

Fusion Apollo coaxial marine speakers deliver immersive, high-fidelity audio on the water and are engineered to withstand harsh marine conditions.

Crystal-clear premium sound quality
Match the mood with dual-hue LED lighting rings
Rigorously tested marinized design

Premium Sound

Enjoy immersive audio at higher volumes, thanks to updated motor designs that reduce distortion for a premium sound experience.

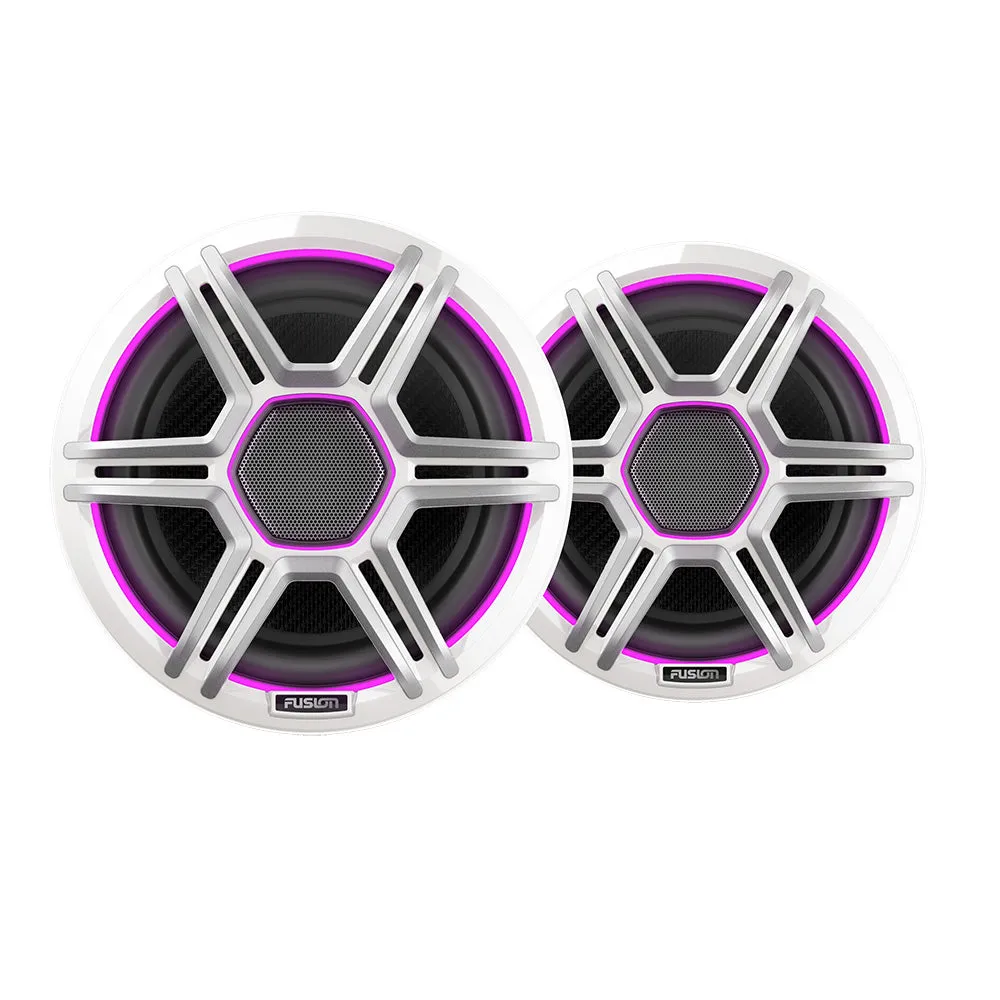

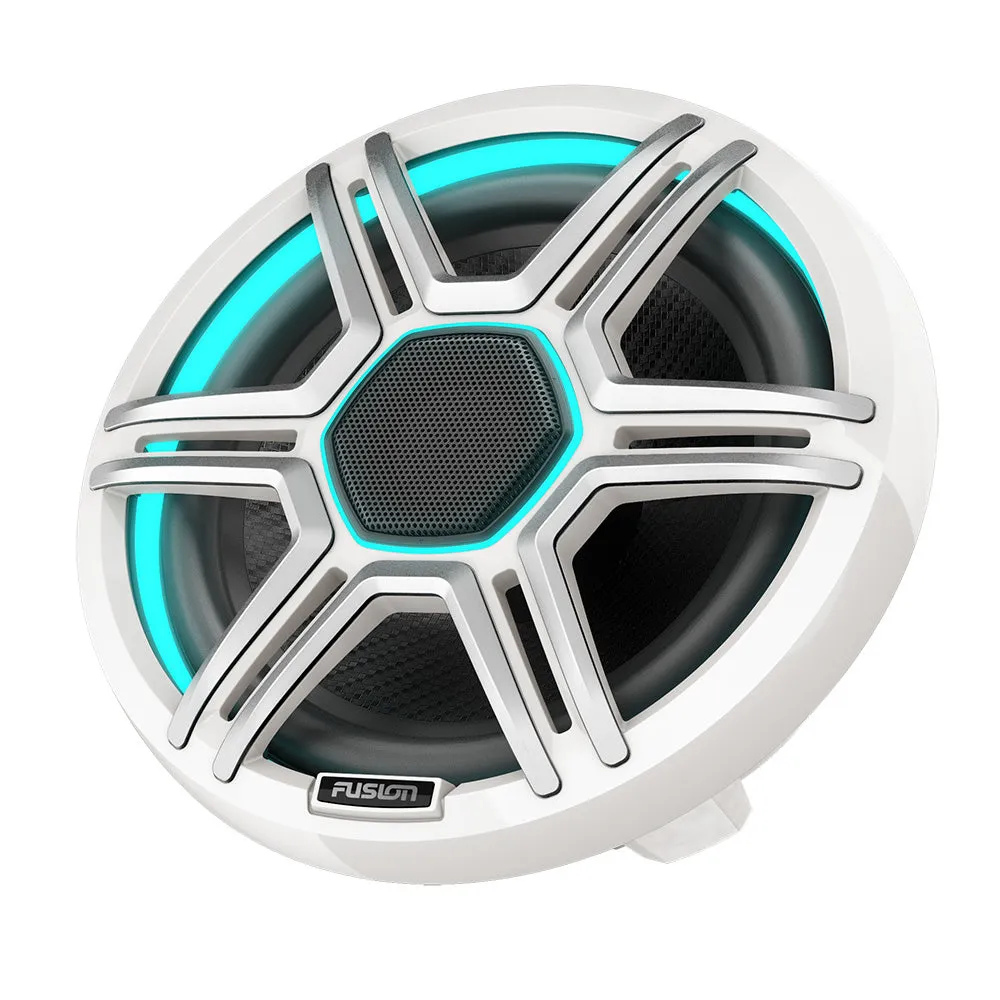

LED Lights

Showcase your boat with dual-hue LED lighting rings that provide a unique look through the distinct hexagonal tweeters. Choose from a broad range of colors to match the mood or music.

Interchangeable Grilles

Complete your speakers with the included sports white interchangeable grilles. For more protection, purchase the shielded grille (also available in gray or white).

Fusion® Audio System

Control your onboard entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app.

System Integration

Pair your speakers with Fusion® head units and amplifiers (sold separately) for the optimal listening experience with minimal distortion.

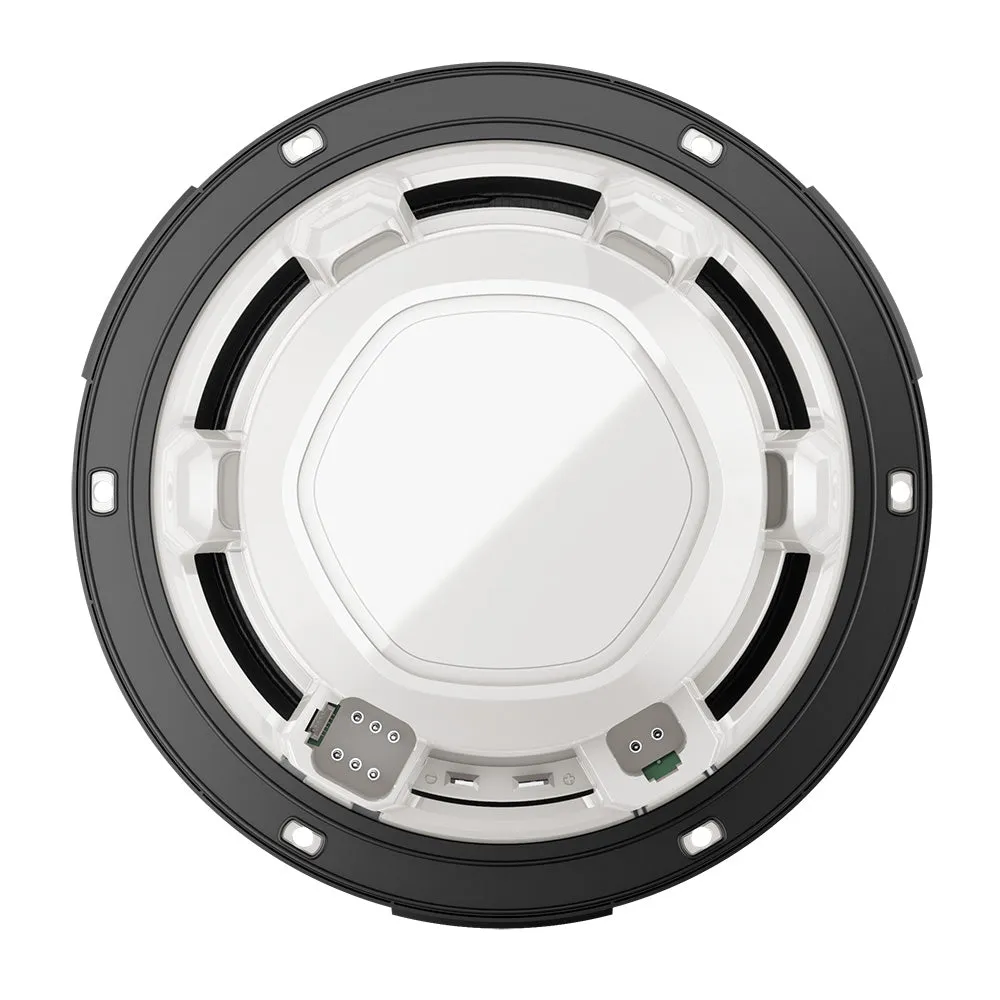

Marinized Connectors

Embedded water-resistant marinized connectors simplify the design and make installation easy; they also meet ABYC requirements.

Feel the Beat

Pair your speakers with the Fusion® Apollo™ subwoofer so you can feel the music, too.

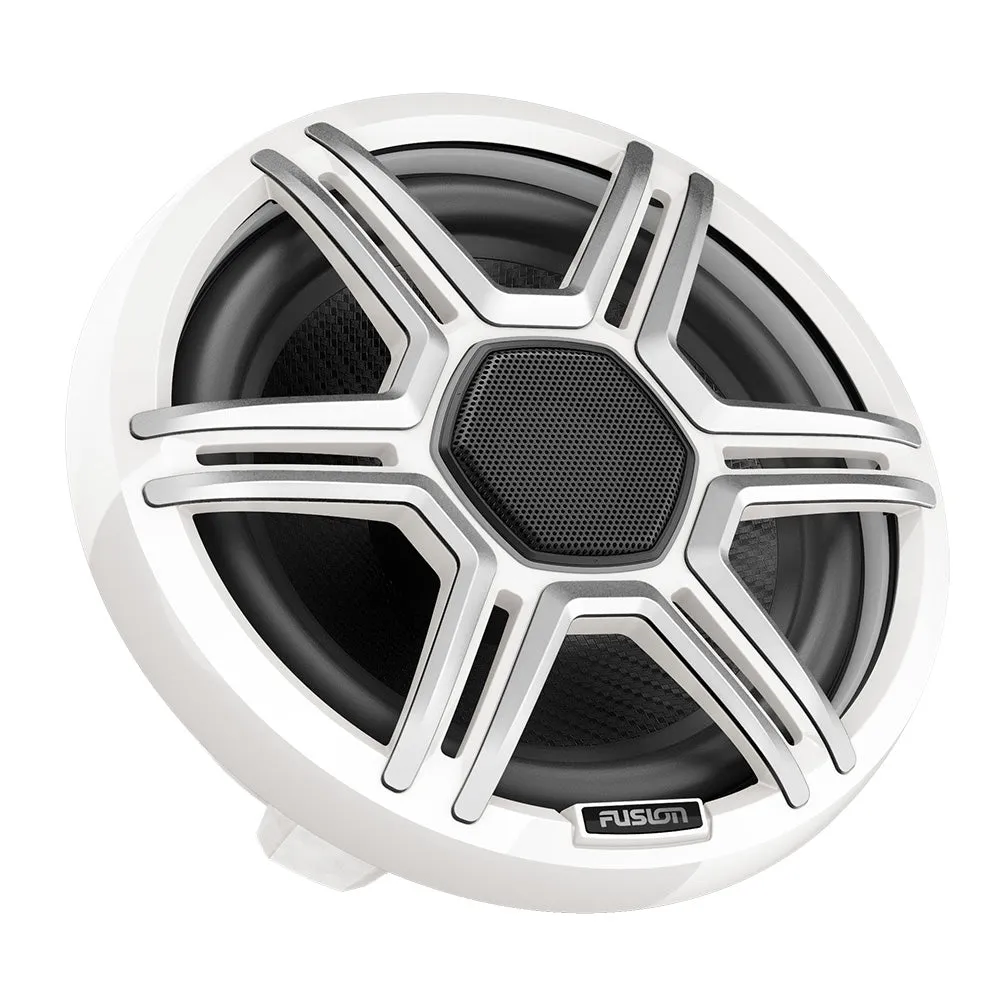

Speaker Grilles

All speaker grilles accent the hexagonal tweeter’s anodized mesh cover and complement the dual-hue LED lighting.

Easy Install

The grilles are simple to install without tools and don’t have screws for a seamless look and finish.

Durable

Fusion Apollo speakers offer a superior level of durability and are built to withstand abuse in harsh marine environments (by IP66/IP67 rating and ISO 12216 standards).

In The Box:

Pair of speakers with sports white grilles
Pair of audio cables with water-resistant two-way connectors
Pair of LED cables with water-resistant six-way connectors
Mounting screws
Documentation

General Specifications:

Size: 7.7"
Color: Sports White
Physical dimensions (Diameter x Depth): 7.72" x 4.46"
Water and dust rating: IP66/IP67
Configuration: Coaxial
Peak power: 400w
RMS power: 100w
Sensitivity (1 watt @ 1 meter): 91 dB
Frequency response: 60 Hz - 22 kHz
Nominal impedance: 4 ohms
Recommended amplifier power (RMS): 30 - 200 w/channel
LED lighting: Yes (CRGBW, 5 colors)
LED supply voltage: 10.5 - 16 VDC
LED load current @14.4 VDC: 0.14 A per color, per speaker
LED load current @14.4 VDC when using Garmin Spectra™¹: 0.31 A maximum per speaker
Operating temperature range: 32° to 122° F (0° to 50° C)
Voice coil diameter: 1.4"
Cone material: CURV® Cone Technology with rubber surround
Tweeter type: 1" Silk Dome
Compass-safe distance: 9.84 ft (300 cm)
Speaker connection: 5.9" (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25" (6.3 mm) positive and 0.19" (4.8 mm) negative)
LED connection: 5.9" (150 mm) water-resistant 6-way connector (6-pin, CRGBW, and ground)
Warranty: 3 years

Mounting Dimensions (Cutout):

Mounting diameter clearance: 6.14" (156 mm)
Mounting depth clearance: 3.39" (86 mm)

¹When using Garmin Spectra™, any color combination can be created using the equivalent current draw of two CRGBW LED channels. This reduces power consumption and increases the number of speakers or subwoofers Garmin Spectra can control.
