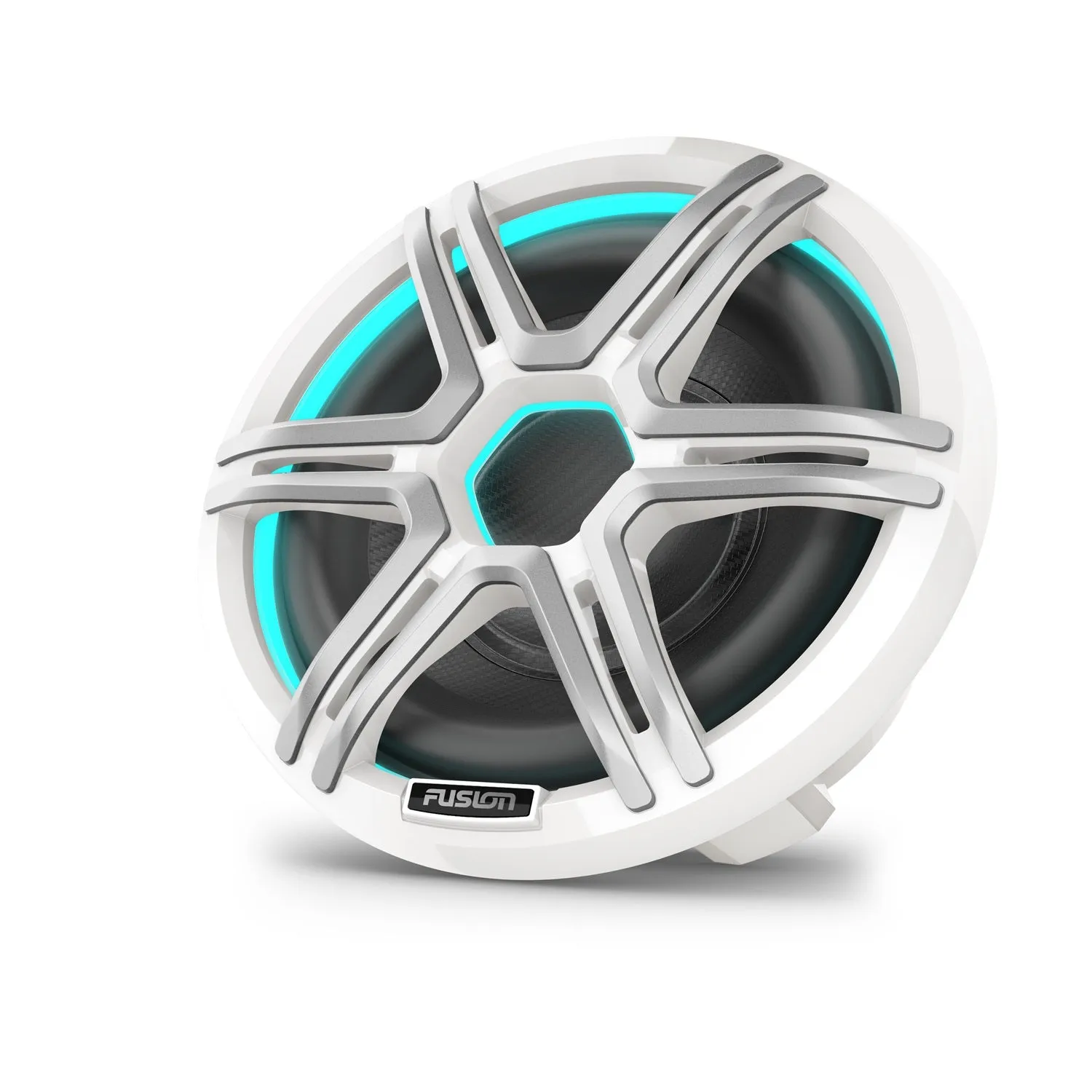

Fusion AP-SL12SPW Apollo 12in LED Marine Subwoofer with Sports White Grille
Model: 010-02918-51- Crystal-Clear Premium Bass
- Mat the Mood with Duel-Hue LED Lighting Rings
- Rigorously tested Marinized Design
Enjoy immersive bass at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience.
Showcase your boat with the dual-hue LED lighting rings that provide a unique look. Choose from a broad range of colors to match the mood or music.
When using Garmin Spectra™, any color combination can be created using the equivalent current draw of two CRGBW LED channels. This reduces power consumption and increases the number of speakers or subwoofers Garmin Spectra can control.
Specifications| Size | 12in |
| Color | sports white |
| Physical dimensions (Diameter x Depth) | 14.02in x 9.77in (356 x 248.2 mm) |
| Water and dust rating | IP66/IP67 |
| Configuration | Subwoofer |
| Peak power | 1400 W |
| RMS power | 700 W |
| Sensitivity (1 watt @ 1 meter) | 86 dB |
| Frequency response | 20 Hz - 2 kHz |
| Nominal impedence | 4 ohms |
| Recommended amplifier power (RMS) | 200 - 700 W |
| LED lighting | yes (CRGBW; 5 colors) |
| LED supply voltage | 10.8 - 16 VDC |
| LED load current @14.4 VDC | 0.27 A per color |
| LED load current @14.4 VDC when using Garmin Spectra™ | 0.54 A maximum |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 4in |
| Cone material | Polypropylene Cone with rubber surround |
| Compass-safe distance | 19.03 ft (580 cm) |
| Speaker connection | 5.9in (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25in (6.3 mm) positive and 0.25in (6.3 mm) negative) |
| LED connection | 5.9in (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground) |
| Warranty | 3 years |
| Mounting diameter clearance | 11.85in (301 mm) |
| Mounting depth clearance | 7.80in (198 mm) |
What's in the Box:
- AP-SL12SPW Apollo 12in LED Marine Subwoofer with Sports White Grille
- Audio cable with water-resistant two-way connector
- LED cable with water-resistant six-way connector
- Mounting screws
- Documentation
