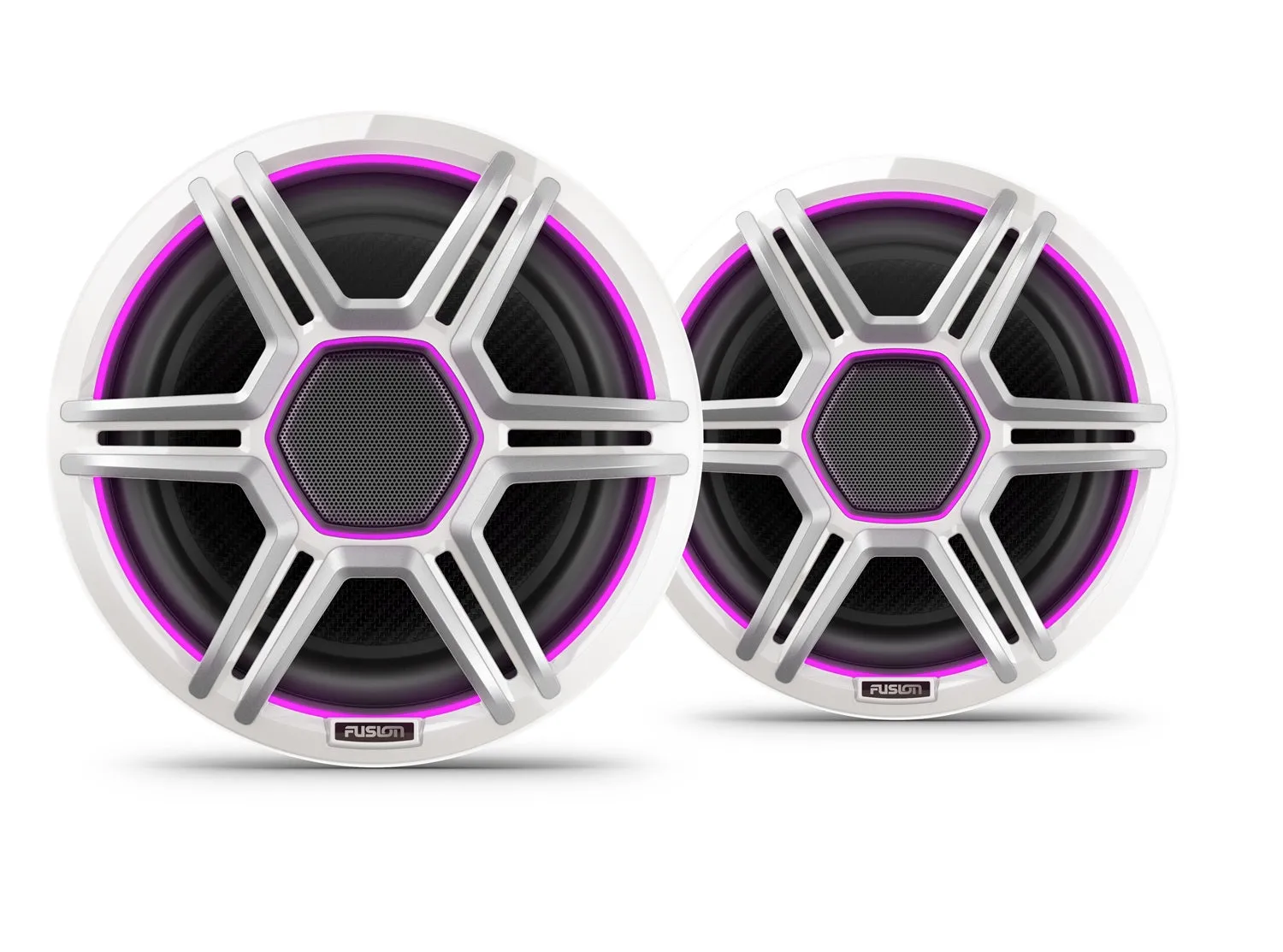

Fusion AP-FL88SPW 8.8in LED Marine Speakers with Sports White Grilles
Model: 010-02918-21- Crystal-Clear Premium Sound Quality
- Match the Mood with Dual-Hue LED Lighting Rings
- Rigorously Tested Marinized Design
Enjoy immersive audio at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience.
Showcase your boat with dual-hue LED lighting rings that provide a unique look through the distinct hexagonal tweeters. Choose from a broad range of colors to match the mood or music.
When using Garmin Spectra™, any color combination can be created using the equivalent current draw of two CRGBW LED channels. This reduces power consumption and increases the number of speakers or subwoofers Garmin Spectra can control.
Specifications| Size | 8.8in |
| Color | Sports white |
| Physical dimensions (Diameter x Depth) | 8.82in x 5.28in (224 x 134.1 mm) |
| Water and dust rating | IP66/IP67 |
| Configuration | Coaxial |
| Peak power | 520 w |
| RMS power | 130 w |
| Sensitivity (1 watt @ 1 meter) | 91 Db |
| Frequency response | 50 Hz - 20 kHz |
| Nominal impedence | 4 ohms |
| Recommended amplifier power (RMS) | 40 - 260 W/channel |
| LED lighting | yes (CRGBW; 5 colors) |
| LED supply voltage | 10.8 - 16 VDC |
| LED load current @14.4 VDC | 0.18 A per color, per speaker |
| LED load current @14.4 VDC when using Garmin Spectra™ | 0.38 A maximum per speaker |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 1.5in |
| Cone material | CURV® Cone Technology with rubber surround |
| Tweeter type | 1.25in Silk Dome |
| Compass-safe distance | 10.33 ft (315 cm) |
| Speaker connection | 5.9in (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25in (6.3 mm) positive and 0.19in (4.8 mm) negative) |
| LED connection | 5.9in (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground) |
| Warranty | 3 years |
| Mounting diameter clearance | 7.09in (180 mm) |
| Mounting depth clearance | 4.13in (105 mm) |
What's in the Box:
- AP-FL88SPW 8.8in LED Marine Speaker Pair White
- Pair of audio cables with water-resistant two-way connectors
- Pair of LED cables with water-resistant six-way connectors
- Mounting screws
- Documentation
